TOPCON Spectroradiometers SR-UL1R and SR-UL2
Ultra-low brightness spectroradiometer

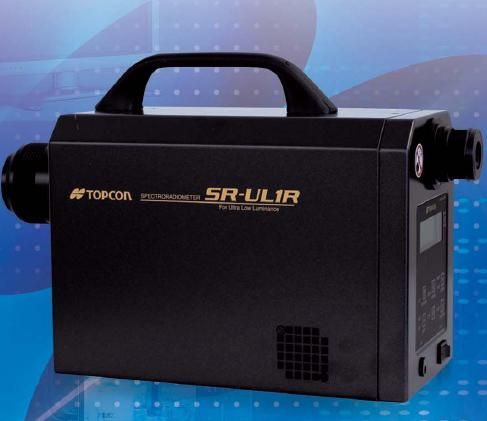

■ TOPCON SR-UL1R
The first ultra-low brightness spectroradiometer developed after the significant improvement in the rod height of the SR-3AR.
■ Product Features:
- It can measure ultra-low luminance above 0.001 cd/m2.
- Depending on the FAST MODE used, high-speed measurements can be performed starting from the low luminance meter range.
- Wide measurement range (0.001~300,000 cd/m2).
- High precision performance with luminance accuracy of ±2% and chromaticity accuracy of ±0.002.
- It can be controlled by an external PC to automatically change the measurement angle.
- High-precision measurement of low-brightness areas of fine surfaces is possible without the need for auxiliary mirrors.
- High-precision measurement scintillation light source (equipped with synchronous measurement function and delay integration time function)
- Using the standard application software, it can perform a wide range of data processing and host control functions.

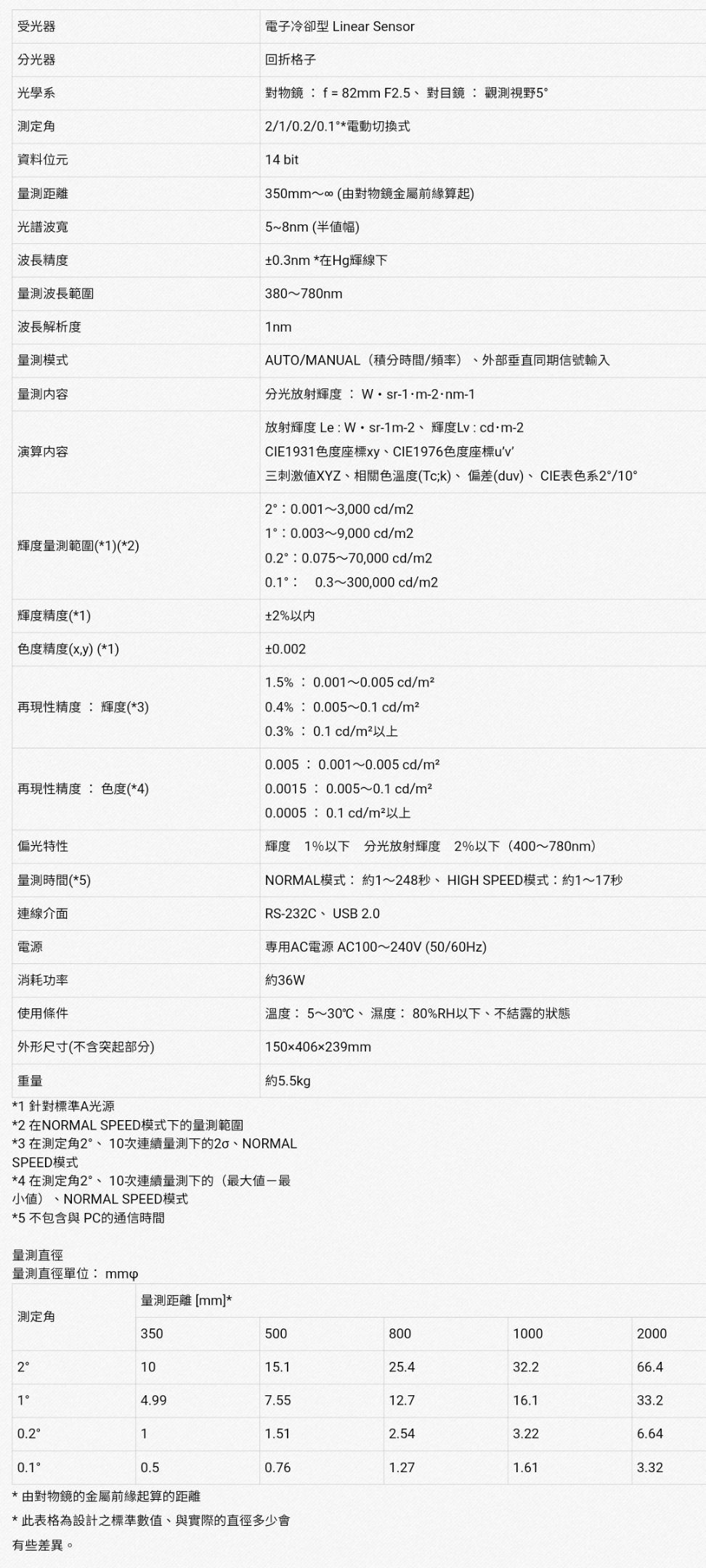

■ Product Specifications:
■ TOPCON SR-UL2
The second model of ultra-low brightness spectroradiometer
■ Product Features:
- High-speed measurement of ultra-low luminance: (0.005 cd/m² -)
- Wide measurement range: (0.0005～300,000 cd/m²)
- It is possible to measure the ultra-low luminance of fine surfaces without the need for auxiliary lenses.
- Equipped with synchronous measurement and integration time delay functions, it can measure scintillation sources with high precision.
- Standard configuration includes application measurement software, enabling extensive data processing and control of the host computer.

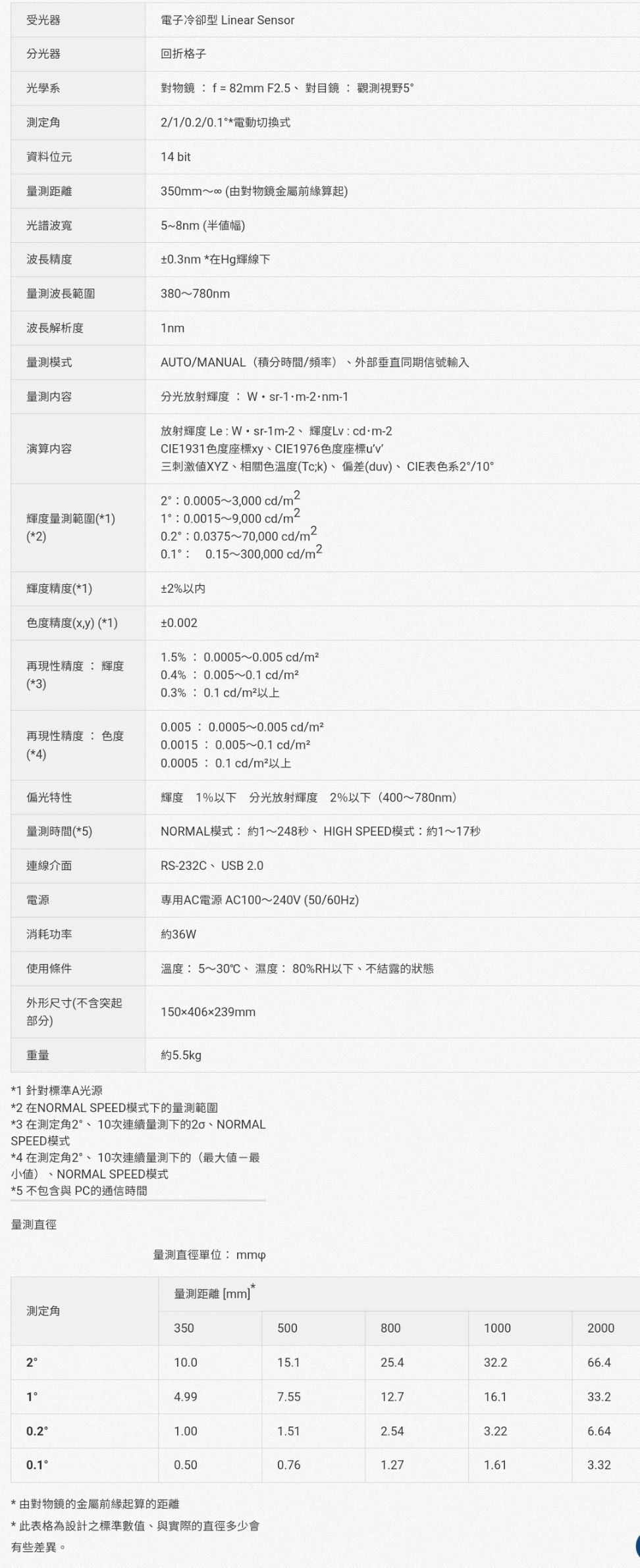

■ Product Specifications:
■ TOPCON Luminometer Rental
■ Specifications, performance and applications:
Please call Mr. Lin at 0920740221 or email him for inquiries.
