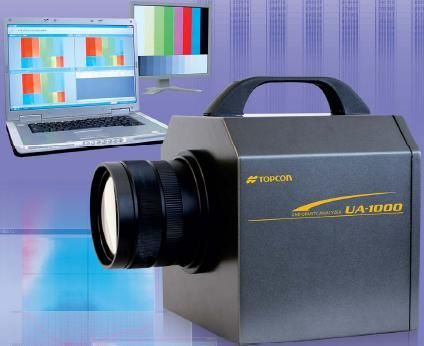

■ Product Features:

• It features a wide dynamic measurement range. [Ultra-low luminance: 0.005-100,000 cd/m²]
• With the standard lens, measurements can be taken on flat panel displays ranging from 9 inches to larger sizes. [Using TOPCON's newly developed lens, equipped with wide-angle, standard, and telephoto functions with corrected angles, this model does not require lens replacement. ***With the addition of a close-up lens, measurements can be taken on displays as small as 1.3 inches.]
• It uses a USB interface. [Also compatible with laptops]
• High resolution of 16 bits (65,535 levels). High resolution of 16 bits per data unit, this model can measure minute concentration differences.
• High-resolution image with 1.4 million pixels. Measured at a maximum resolution of 1360x1024 pixels.
• Calibration is performed using the TOPCON reference. [Can be used with SR-UL1R, SR-3A, or SC-777 as the reference surface for the UA-1000.]
