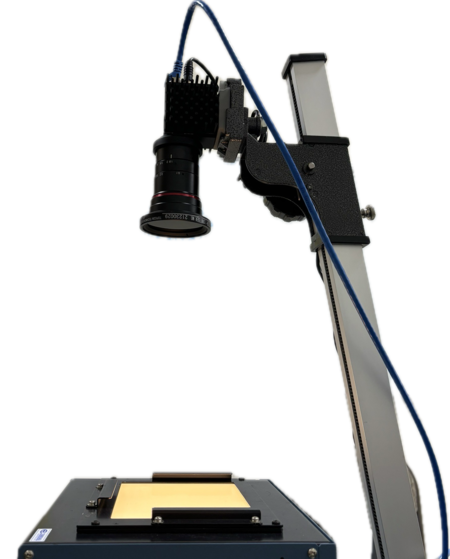

Online penetration measurement system

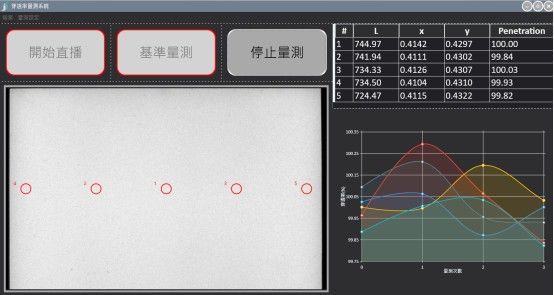

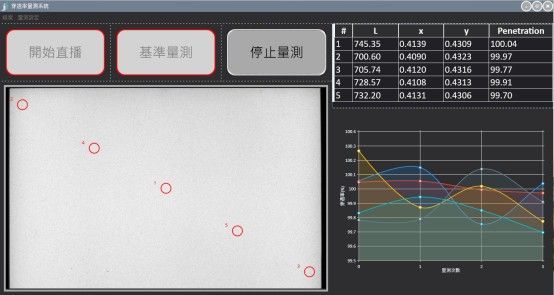

# Online automated measurement software # Factory production line automation
| 型号 | JUA-TF230W | ||
|---|---|---|---|
| 光亮采集 | 230万像素 CMOS图像传感器 | ||
| 物镜 | 单焦点对物镜
焦點距離6.5mm |
||
| 有效像素 | 1920×1200 | ||
| 数据位 | 12 bit | ||
| 穿透率精度 *1 | ±0.3% (標準片誤差) | ||
| 色度精度 *1 | ±0.003 | ||
| 面内 MURA 均匀性 *2 | 2% (可透過補正修正) | ||
| 重复精度 *1 | 穿透率 : 0.3% | ||
| 穿透率色度 : 0.002 | |||
| 稳定性 *2 | ±1%以下 | ||
| 再现性 *2 | ±1%以下 | ||
| 界面 | LAN (Gigabit Ethernet) | ||
| 测量區域 | 400mm X 200MM | ||
| 量測光源 | 鹵素燈平面光源 | ||
*1 Measurement at the center point of standard light source A. *2 Example of measurement error: Transmittance 50%, difference of 2%, actual value 49%-51%.
■ Product Consultation and Services:
Please call Mr. Lin at 0920740221 or email him for inquiries.
