Industrial Computer AIM

Eagle Eyes Series

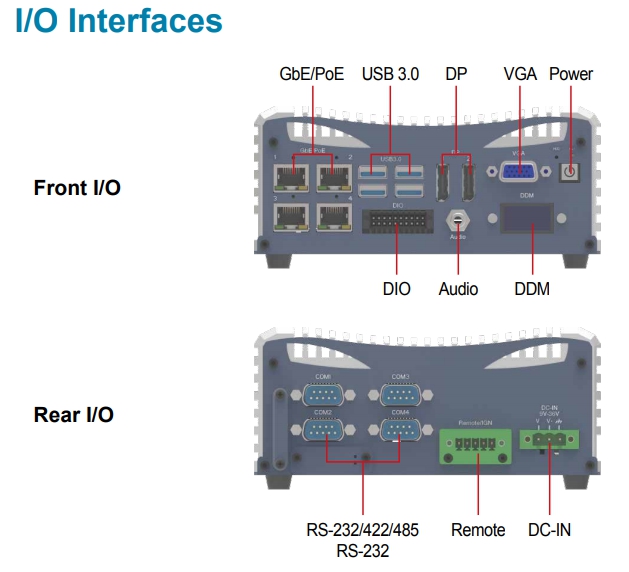

                      Front                                          Back

6th/7th Generation Intel^® Core™ U Series Processor Fanless Box Computer, 2x~4x RJ45 GbE/PoE

■ Features

■ Specifications

【System】

6th Gen Intel® Core™(formerly Skylake U-Series)	Core™ i7-6600U (2/4 Cores, 2.6 GB/3.4 GHz, 4M Cache, 15W TDP) Core™ i5-6300U (2/4 Cores, 2.4 GHz/3.0 GHz, 3M Cache, 15W TDP) Core™ i3-6100U (2/4 Cores, 2.3 GHz, 3M Cache, 15W TDP) Celeron® 3955U (2/2 Cores, 2.0 GHz, 2M Cache, 15W TDP)
7th Gen Intel® Core™(formerly Skylake U-Series)	Core™ i7-7600U (2/4 Cores, 2.8 GB/3.9 GHz, 4M Cache, 15W TDP) Core™ i5-7300U (2/4 Cores, 2.6 GHz/3.5 GHz, 3M Cache, 15W TDP) Core™ i3-7100U (2/4 Cores, 2.4 GHz, 3M Cache, 15W TDP) Celeron® 3965U (2/2 Cores, 2.2 GHz, 2M Cache, 15W TDP)
Memory	1x SO-DIMM DDR4 2133 (32GB Max.)
Graphics	Intel® HD Graphics 510 (3955U) Intel® HD Graphics 520 (Skylake) Intel® HD Graphics 610 (3965U) Intel® HD Graphics 620 (Kaby Lake)
BIOS	AMI 128Mbit SPI BIOS
AI Controller (AIC)	AI for system monitoring and predictive analysis
Watchdog Timer	Runtime: 10 – 65535 seconds Powerup: 120 – 65535 seconds
TPM (optional)	Infineon OPTIGA™ SLB9665 (TPM 2.0) / SLB9635 (TPM 1.2)

【Power】

DC Input	9~36VDC
Surge Protection	80V/1ms
Power in Protection	Reverse-Voltage, Over-Voltage, Under-Voltage, Over-Current
Remote/Ignition	1x ATX power on/off switch, 5-pin terminal block including 3-pin remote control and 2-pin ignition signals (pitch 3.81 mm)
Power Mode	AT/ATX (BIOS setting)

【Mechanical】

Dimensions (W x D x H)	161(W) x 130(D) x 68.1(H) mm (6.34" x 5.12" x 2.68")
Weight (net/gross)	1.7kg
Mounting	Foot stand; wall mount bracket
Construction	Aluminum and metal chassis with fanless design
RTC Battery	Easily replaceable RTC battery holder
Dynamic Display Module (DDM)	0.96 inch LCM work with AIC to display system status

【External I/O】

Display Ports /Resolution	2x DP/4096x2304@60Hz 1x VGA/1920x1200@60Hz
Triple Display Ports	2x DP + 1x VGA
Ethernet	4x RJ45 GbE (1x Intel® i219 + 3x Intel® i210) / Wake-on-LAN and PXE/ i219 supports iAMT 11.0 (AIM6-i, AIM6)
PoE (optional)	2x RJ45 GbE (1x Intel® i219 + 1x Intel® i210) PoE+ 802.3at support up to 30W (AIM6-P2i, AIM6-P2) 4x RJ45 GbE (1x Intel® i219 + 3x Intel® i210) PoE+ 802.3at support up to 30W (AIM6-Pi, AIM6-P)
USB 3.0/2.0	4x USB 3.0 ports via native XHCI controller (0.9A each port)
COM	2x RS-232/422/485 (auto flow control), 2x RS-232 port
Digital I/O	16-bit programmable DIO (AIM6, AIM6-P, AIM6-P2) 8-bit isolated DI & 8-bit isolated DO, Sink/Source Mode, 5~48V, 100mA (AIM6-i, AIM6-Pi, AIM6-P2i)
Audio	ALC892 HD audio codec, Mic in, Line out
SIM and USIM Socket	2x SIM Push-Push sockets – SIM supports 2G USIM supports 3 & 4G
Wi-Fi/Cellular	Supports Wi-Fi/LTE modules via 2x Mini PCIe interfaces

【Storage】

Internal Drive Bay	1x internal SATA port for 2.5” HDD/SSD
mSATA	1x mSATA (muxed with Mini PCIe)
M.2	1x M.2 M Key 2242

【Expansion Slot】

Mini-PCIe	1x full length Mini PCIe (PCIe/mSATA + USB + USIM) 1x lull length Mini PCIe (PCIe + USB + USIM)

【Other】

USB 2.0 Dongle	Internal 1x USB 2.0 for dongle security key
Antenna	4x antenna openings
LED	Power status, HDD status, IO status

【Environment】

Operating Temperature	Standard: -20°C to 50°C (-4°F~122°F), supports 15W TDP CPU Extended temperature: -25°C to 70°C (-13°F~158°F)
Storage Temperature	-40°C to 85°C (-40℉ to 185℉)
Relative Humidity	95% @ 40°C (104°F), non-condensing
Vibration During Operation	5Grms with SSD (IEC60068-2-64: random 5~500Hz)
Shock During Operation	50Grms with SSD (IEC60068-2-27: Half Sine, 11ms duration)

【Certification】

EMC	CE/FCC Class A
Safety Certifications	CB

【OS Support】

Windows	Windows 7 32-bit/64-bit (Skylake only) Windows 8.1 32-bit/64-bit (Skylake only) Windows Embedded Standard 7(Skylake only) Windows Embedded 8 Standard (Skylake only) Windows 10 64-bit Windows 10 IoT
Linux	Linux

Download【Datasheet】Eagle Eyes-AIM

■ Difference from other products

【Exterior】

【Specifications】

■ Product consultation: (Specification, performance, and use)
   Please Call 0920740221 Mr. Lin or E-MAIL Inquire
